型號Model/參數項目Item Parameters |
JS500 |

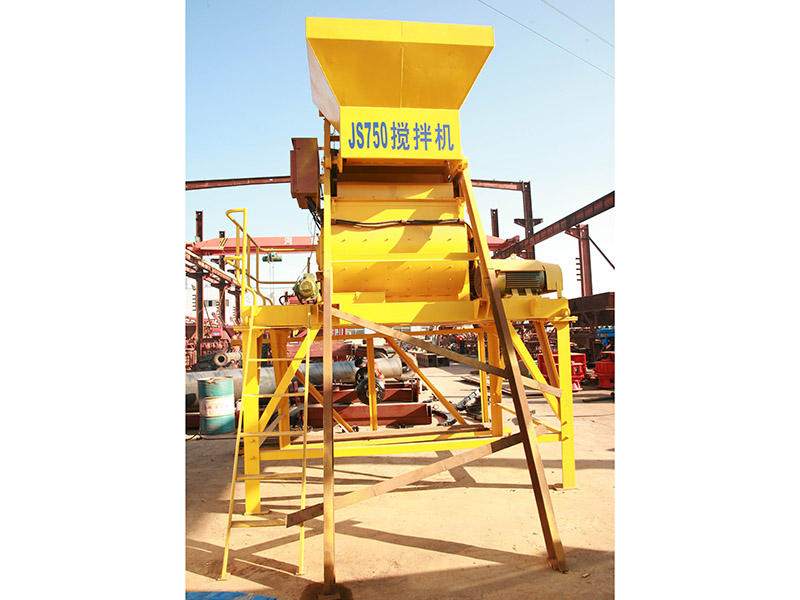

JS750 |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
JS4000 |
進料容量(L)
Loading capacity |
800 |
1200 |
1600 |
2400 |
3200 |
4800 |
6000 |
出料容量(L)
Discharge capacity |
500 |
750 |
1000 |
1500 |
2000 |
3000 |
4000 |
生產率(m³/h)
Productivity |
≥25 |
≥35 |
≥50 |
≥75 |
≥100 |
≥150 |
≥150 |
骨料最大粒徑(卵石/碎石)(mm)
Max.dia.of aggregate(pebble/macadarn) |
80/60 |
80/60 |
80/60 |
80/60 |
80/60 |
80/60 |
80/60 |
攪拌電機
Mixer motor |
型號Type |
Y180L-4 |
Y2O0L-4(B3) |
Y200L1-6 |
Y225S-4 |
QA225S4A |
QA225S4A |
Y2-280S-4 |
功率(KW)Power |
18.5 |
30 |
2×18.5 |
2×30 |
2×37 |
2×55 |
2×75 |
卷揚電機
Haisting motor |
型號Type |
YEZ132S-4-B5 |
YEZ132M-4 |
YEZ180M-4 |
YEZ200L2-6 |
|
|
|
功率(KW)Power |
5.5 |
7.5 |
18.5 |
22 |
|
|
|
料斗提升速度(m/min)
Hopper lifting speed |
18 |
18 |
21.9 |
23 |
|
|
|
外形尺寸
長×寬×高
Outline dimensions
(length*width*height) |
運輸狀態
Transporting status |
3050×2300×2680 |
2540×3160×2660 |
4060×2250×2250 |
5058×2250×2440 |
3945×2250×2735 |
3945×2250×2735 |
4345×2250×2835 |
工作狀態
Working status |
4461×3050×5225 |
5090×3320×6275 |
8765×3436×9540 |
9645×3436×9700 |
4245×2440×2130 |
4545×2440×2130 |
4945×2540×2230 |
整機重量
Total weight |
4000 |
5500 |
8750 |
11130 |
9000 |
10500 |
11800 |
卸料高度
Discharge height |
1500/3800 |
2700/3800 |
2700/3800 |
3800 |
|
|
|
